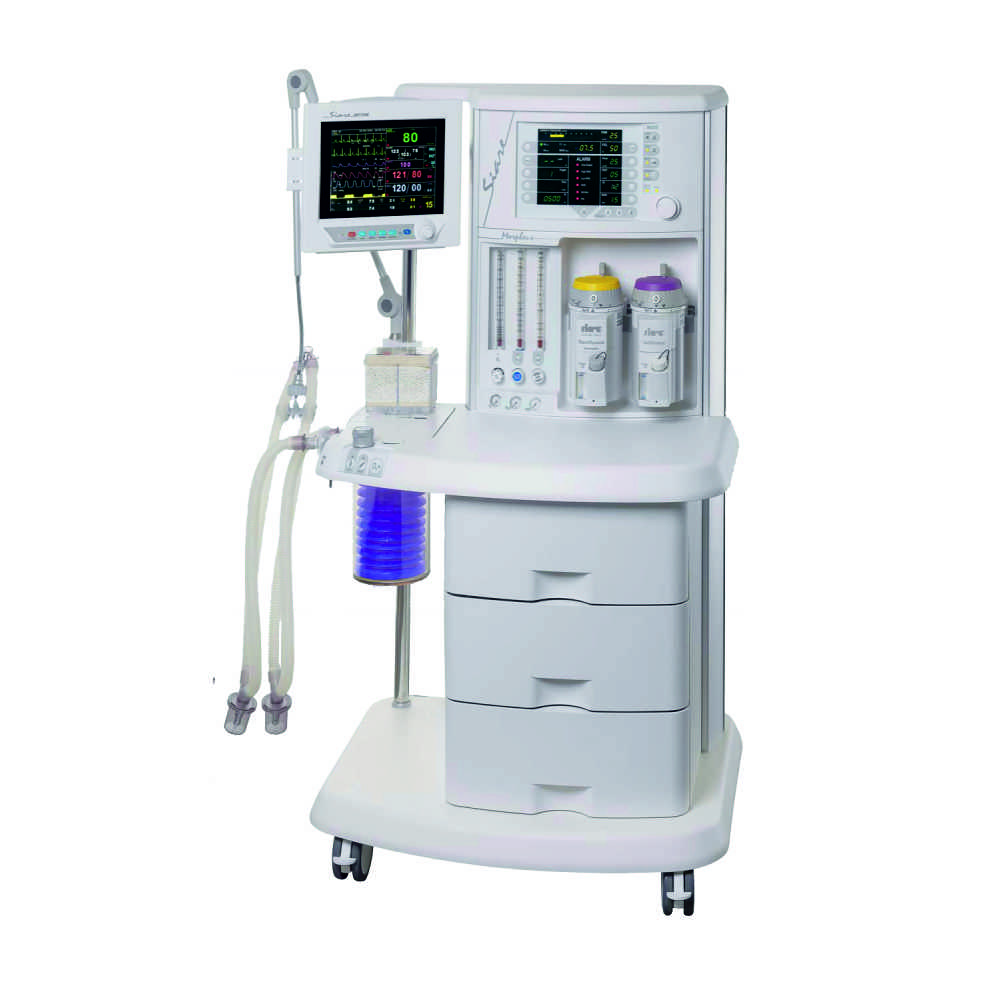

• The MORPHEUS LT MRI is an anesthesia machine and it can be used on adult, children and newborn patients.
• The MORPHEUS LT MRI is suitable for administration of Oxygen – Air – Nitrous Oxide – Halothane – Enflurane – Isoflurane – Sevoflurane – Desflurane mixtures.
• The anesthesia machine MORPHEUS LT MRI is completed with:
– mechanic gas mixing system
– electronic lung ventilator with dual color display 165 x 145 mm with membrane keyboard and encoder
– valves group: open, semi-closed, closed, heated, with soda lime absorber (1,5 Kg)
– SIARETEX rapid connection device, Selectatec compatible for 2 vaporizers
– gas supply group
The lung ventilator incorporates dual color display 165 x 145 mm with membrane keyboard and encoder
Ventilation modalities:
MANUAL, VC-VAC, PCV-APCV
Measured parameters:
PAW, PEEP, Pmean, Rate, Pause, VM, Tinsp, FiO2
Optional: Pmax, Pmean, Pause, PEEP, Vti, Vte, ExpMV, Rate, FLOWi, FLOWe, I:E, Tinsp, Tesp, Tpause, Cs, Ri
Displayed ventilation curves:
Paw, Flow, Volume, Loop (Volume/Paw ; Volume/Flow)
Adjustable parameters:
O2 built-in Mixer device from 21% to 99%, I:E Adjustable Ratio: 1:1 – 1:1.5 – 1:2 – 1:3 – 2:1 – 3:1,
Inspiratory Flow, PEEP, Breathing Rate, Minute Volume, Tidal Volume, Inspiratory Pressure Limit,
Inspiratory Pause, Inspiratory Time,Trigger
